Engine + Generator Integrated Hybrid System for Long-Endurance UAVs

The 70cc hybrid engine is a hybrid power platform designed specifically for UAVs, combining the advantages of a gasoline engine with the efficiency of a high-performance generator. It provides propulsion power for the aircraft while simultaneously supplying stable electrical power to various avionics systems during flight, making it the optimal solution for long-range mission operations. This next-generation power solution supports extended endurance, high power output, and stable operation even when multiple mission payloads are in use.

Key Values

Maximized Long-Endurance Capability

· Fuel-based power generation enables significantly extended flight times, overcoming the endurance limitations of fully electric UAVs.

Strong Power Supply Capacity

· Capable of reliably powering high-consumption mission systems such as sensors, payloads, and communication modules.

Reliable and Stable Operation

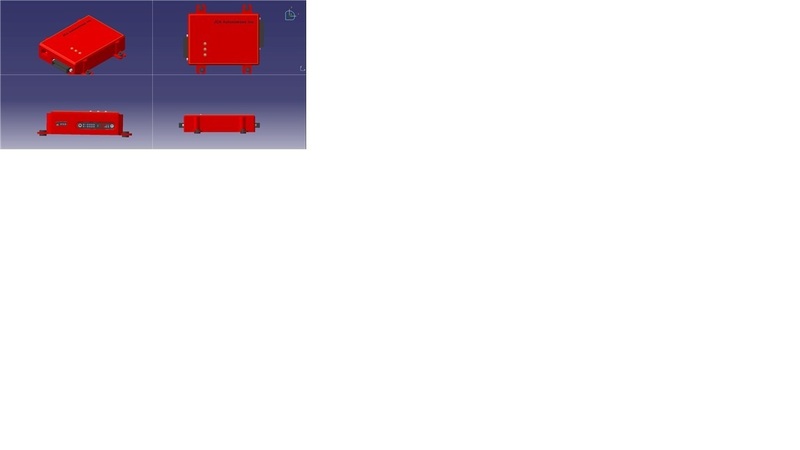

· The intelligent control system (ECU + PMS) continuously monitors engine conditions, greatly enhancing mission safety.

Optimized Platform Integration

· Propulsion, generation, and power management are integrated into a single system, maximizing overall UAV system efficiency.

Integrated Engine + Generator Hybrid Architecture

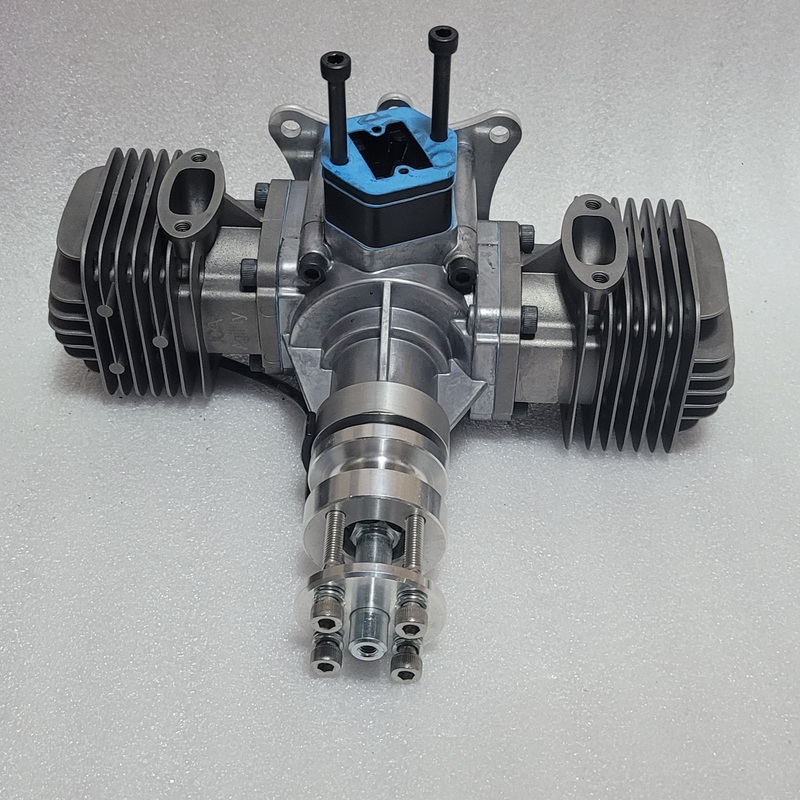

· A unified structure combining a 70cc gasoline engine with a high-efficiency generator provides continuous and stable electrical power.

· Maintains consistent power quality across various flight profiles including takeoff, cruise, and mission execution.

· Achieves weight reduction and simplified system design.

High-Efficiency Power Generation and Intelligent Power Management

· Engine is controlled to operate within the RPM range that yields the highest generation efficiency, improving fuel economy and minimizing power loss.

· PMS ensures system safety through functions such as over-current protection and optimized power distribution.

Design Optimized for Long-Endurance Missions

· Supplies all required power during extended flight, significantly increasing total mission time.

· Optimal engine operation reduces thermal stress and improves overall durability.

Applications

· Long-endurance fixed-wing UAVs

· Hybrid propulsion/power systems for medium and large UAVs

· Long-range reconnaissance, surveillance, and mapping missions
